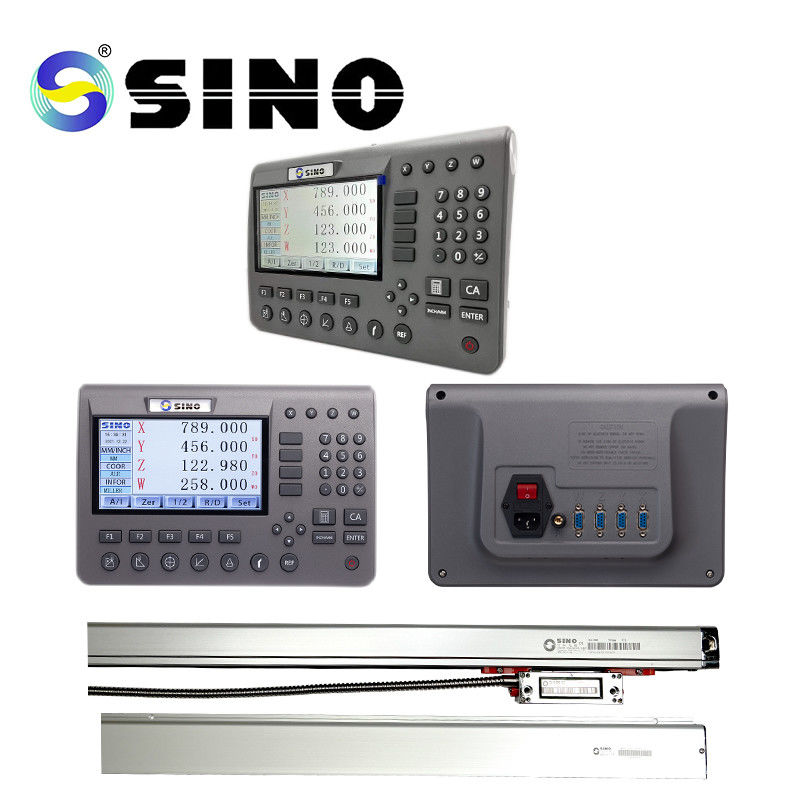

SINO SDS200S LCD Touch Screen Digital Readout Kit For Lathe Grinder Millilling

Marka Adı:	SINO
Model Numarası:	SDS200s, KA-600, KA-300
Adedi:	1 Takım
fiyat:	negotiable
Paketleme Detayları:	karton
Ödeme Koşulları:	T/T, L/C

Detay Bilgisi

Ürün Açıklaması

Detay Bilgisi

Menşe yeri:

Guangzhou, Çin

Sertifika:

CE,RoHS

Belge:

SINO SDS200 Instruction man...EN.pdf

Öğe adı:

3 Eksen LCD Dokunmatik Ekran Dijital Okuma

Kullanım:

Freze Makinesi Sondaj makinesi

Sistem:

Süper Mini Torna Delme Makinesi Okuma SDS200s

Ölçekli model:

Optik Doğrusal Cetveller: KA-600, KA-300, KA-500

Sinyal:

Doğrusal Ölçekli Dro Sistemi: TTL / RS422

Çözünürlük:

Doğrusal Cetveller: 0,005 mm/0,001 mm

Gerilim:

Okuma Gücü: AC 100V-240V

Ölçüm. seyahat:

Lineer Cetveller: 1000-3000mm, 70-1020mm

Renk:

Gri

Yetenek temini:

Ayda 3000 takım

Vurgulamak:

3 axis digital readout for lathe

LCD touch screen digital readout

millilling machine digital readout kit

Ürün Açıklaması

SINO SDS200S LCD Touch Screen Digital Readout Precision Kit For Lathe Grinder Millilling

A multifunctional three axis digital readout is the DRO SDS200S. By altering the system parameters, it can adapt to the various machining requirements. It contains numerous graphical machining features, including the ability to calculate arcs, drill holes with uniform spacing around the circumference, drill holes perpendicular to a line, process angular surfaces, calculate angles, measure taper, and use digital filters. These features make the graphics function easier to use.

Package list:

Item name	3 axis mini size metal LCD milling machine Readout kit
Digital Readout (DRO)	SDS200
Linear scale for axis X	1000-3000mm
Linear scale for axis Y	70-1020mm
Rack for DRO	L400
Protection cover for X scale	Type M
Protection cover for Y scale	Type D
Bracket for scales	T-bracket (1 or 2 sets, depend on the size)
Others	Cable / Screws / Manual

Advantages

-Support for five languages: Chinese, German, French, English, and Spanish

-Touch Screen, easy to use

Simple, user-friendly system

-Large LCD screen that clearly shows

Specifications of the SINO SDS200S linear scale encoder and digital readout systems

A high-performance universal display console with capabilities for milling, turning, and grinding is available with the SDS200.

This four-axis variant supports a maximum of four connected linear encoders. Additional connectors can be used to combine axes or change the input to fit the needs of equipment made by different manufacturers. Please refer to the guide below for encoder compatibility.

sturdy die cast housing and a front panel membrane with tactile switches.

a sizable, simple-to-read LCD display.

Functions include; PCD, line of holes, 200 zero memory, radius/diameter display, tool offsets.

Detail Information:

SINO SDS200S LCD Touch Screen Digital Readout Kit For Lathe Grinder Millilling 0

SINO SDS200S LCD Touch Screen Digital Readout Kit For Lathe Grinder Millilling 1

Pin Description:

SINO SDS200S LCD Touch Screen Digital Readout Kit For Lathe Grinder Millilling 2

All linear scales were tested before delivery. Here is a sample of a scale's test report.

SINO SDS200S LCD Touch Screen Digital Readout Kit For Lathe Grinder Millilling 3
